Key Specs Summary
- Buddy Tracking for up to 20 riders with no cell service required; compatible with Polaris RIDE COMMAND Group Ride vehicles
- Premium snowmobile hardware with CNC aluminum quick-release dock and aluminum 1-1/8 in center mount
- 4.3 in WQVGA glove-friendly touchscreen with 900 cd/m2 typ brightness through lens and 1000:1 typ contrast ratio
- NXP i.MX 6 dual-core applications processor and u-blox MAX-M10S multi-GNSS receiver
- 9-16 V DC external power plus internal 3.7 V 3100 mAh Li-ion backup battery
- IP67 environmental rating, Bluetooth 5.1, and microSD support up to 64 GB

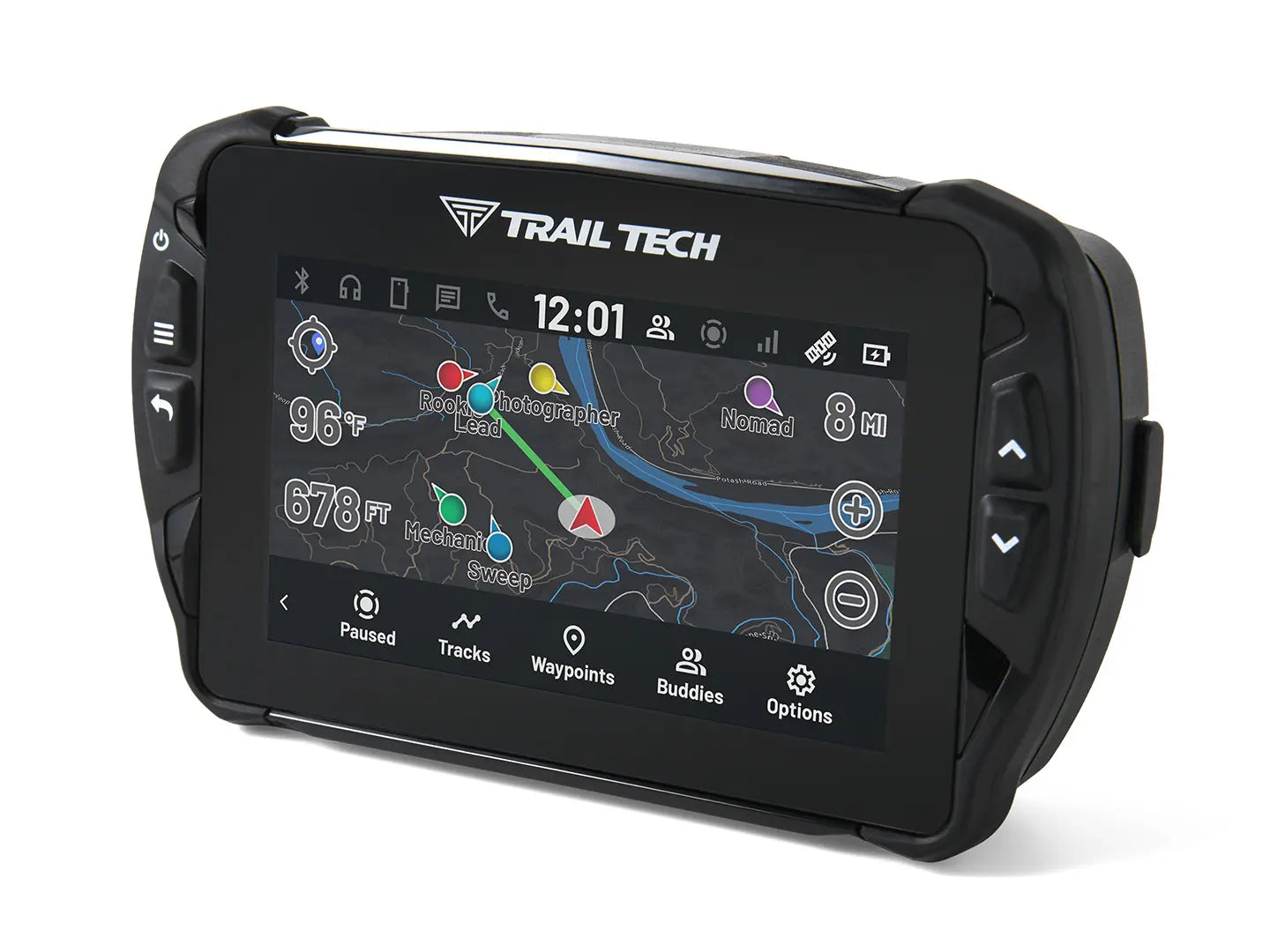

Display & Touch
- Head Unit Part Number: 9205-R2
- Display Type: 4.3 in WQVGA TFT LCD, landscape orientation
- Touchscreen Type: Glove-friendly touchscreen
- Touch Technology: Projected capacitive
- Display Resolution: 480 x 272 px
- Brightness: 900 cd/m2 typ through cover lens
- Contrast Ratio: 1000:1 typ
- Viewing Angle: 80 / 80 / 80 / 80 typ
- Screen Appearance: Normally black
- Touch View Area: 96 x 54.8 mm
- Cover Lens Size: 116 x 79.4 x 1.1 mm
- Cover Lens Material: Chemically strengthened soda-lime glass
Processor, Memory & Storage
- Application Processor: NXP i.MX 6 dual-core applications processor
- CPU Architecture: Dual-core Arm Cortex-A9
- System Memory: 8 Gb RAM
- Internal Memory: 32 GB
- External Memory Support: microSD up to 64 GB
Power & Battery
- External Power Input: 9-16 V DC
- Internal Battery: 3.7 V 3100 mAh Li-ion
- Power Draw, Shutdown: 0 mW
- Power Draw, Sleep: 100 mW
- Power Draw, Low: 1.2 W
- Power Draw, Max: 2 W
- Battery Life, Typical Use: 2 hours
- Battery Life, 100% Backlight: 45 minutes
- Battery Charge Time: 6.5 hours
- Charge Temperature Range: 16-45 degrees C (60.8-113 degrees F)
- Operating Temperature: -10-45 degrees C (14-113 degrees F)
- Storage Temperature: -10-45 degrees C (14-113 degrees F)
Environmental, Physical & Compliance
- Environmental Rating: IP67
- Temperature Display Range: -10-210 degrees C (14-410 degrees F)
- Physical Dimensions: 144 x 90 x 47 mm (5.67 x 3.54 x 1.85 in)
- Physical Weight: 410 g (0.90 lb)
- Mounting Pattern: AMPS 30 x 38 mm
- Dock Style: Hard mount with quick-release and thumbscrew retention
- Certifications / Standards: IP67; FCC; IC; CE
GNSS, Mapping & Recording
- GNSS Chipset: u-blox MAX-M10S
- GNSS Receiver Type: Concurrent multi-GNSS receiver
- Supported Constellations: GPS, GLONASS, Galileo, BeiDou
- GPS Accuracy: 1.5 m
- GPS Update Rate: 10 Hz
- Speed Range: 0-320 km/h
- Distance Range: 0-999,999 km
- Elevation Range: up to 9,000 m
- Accumulated Runtime: 0-99,999 hr
- GPS Record Rate Options: 1, 2, 5 sec / 1, 5, 10 m
- Supported File Types: GPX, GeoPDF, Raster MBTiles
Onboard File Support
- GPX Recording & Export: View your actively recording track on the device and save or export recorded rides as GPX files, including waypoints.
- GPX Import: Import previously exported GPX files or compatible custom GPX files created with route-planning tools.
- GeoPDF: Import georeferenced single-image map overlays. Technical users can create GeoPDFs in GIS software or export them from services that support geospatial PDF maps.
- Raster MBTiles: Import compatible raster MBTiles map packages. Files must be prepared as a single raster layer. MBTiles packages can bundle multiple zoom levels into one offline map for higher detail as you zoom in.
- Custom Map Storage Note: Available space for custom maps is typically around 2 GB with the default maps installed. If the default maps are replaced, available space for custom maps can increase to approximately 20 GB.
Buddy Tracking & Group Visibility
- Buddy Tracking Technology: Private rider-to-rider location network using radio signals and GPS
- Group Capacity: Supports up to 20 riders in a single group
- Cell Service Requirement: Not required
- Network Behavior: Riders in the group can pass location updates along, helping dispersed riders stay connected
- Typical Buddy-to-Buddy Range: Approximately 0.5-1.5 miles
- Range Note: Range improves with line of sight and fewer obstructions; terrain, installation, and environmental conditions affect real-world results
- Required Hardware: External V2V antenna required and included in kit
- Antenna Mounting Guidance: Mount the V2V antenna vertically for best performance
- Compatible Group Ride Systems: Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles
- Buddy View: Shows group members on the map screen with name and location
- Buddy Features: Buddy Tracking, Buddy Tails, Navigate to Buddy, Buddy Beacon
- Buddy Beacon Note: Group-alert / regroup feature only; not a rescue beacon
Wireless, Audio & Interfaces
- Bluetooth Version: 5.1
- Bluetooth Profiles / Functions: HSP, HID
- Bluetooth Phone / Headset Pairing: Music controls, calls, and text alerts with a compatible phone and headset
- Dock Connector to Head Unit: Gold pogo pins
- Dock Rear Harness / Sensor Leads: 4 JST leads
- Power Connector: Female 3-pin JST
- Buddy Tracking V2V Antenna Connector: SMB (included)
- GPS Antenna Connector: SMB
- Wheel Sensor Connector: Male 2-pin JST (sold separately)
- Tach / Ignition Sensor Connector: Female 2-pin JST
- Temperature Sensor Connector: Female 4-pin JST
- Ambient Temperature Sensor: Integrated short lead on dock
Snow Kit Dock, Mount & Fitment
- Dock Part Number: 9200-ALDK
- Dock Material: CNC aluminum
- Dock Construction: Two-piece sliding dock with upper and lower grips for a secure hold
- Dock Retention: Top-mounted thumbscrew retention screw
- Dock Weather Details: Rubber IP67 antenna port caps
- Dock Mounting Inserts: 4 aluminum inserts in AMPS pattern
- Handlebar Mounting AMPS Plate: 9200-BCA
- Handlebar Mounting Hardware: 9200-BKPK
- Center Mount: 026-OEB9 Aluminum Center Mount (for 1-1/8 in handlebars)
- Buddy Tracking Antenna: 9200-V2V1
- Power Wire: 9000-1011 (48 in)
- Tach Sensor: 9000-1021 (70 in)
- Temperature Sensor: 7500-3000 Universal Temperature Sensor
- Intended Vehicle Type: Snowmobile
- Compatibility / Fitment: Snowmobiles with regulated 9-16 V DC power
- Mounting Type: AMPS hard mount with aluminum center mount and handlebar AMPS plate

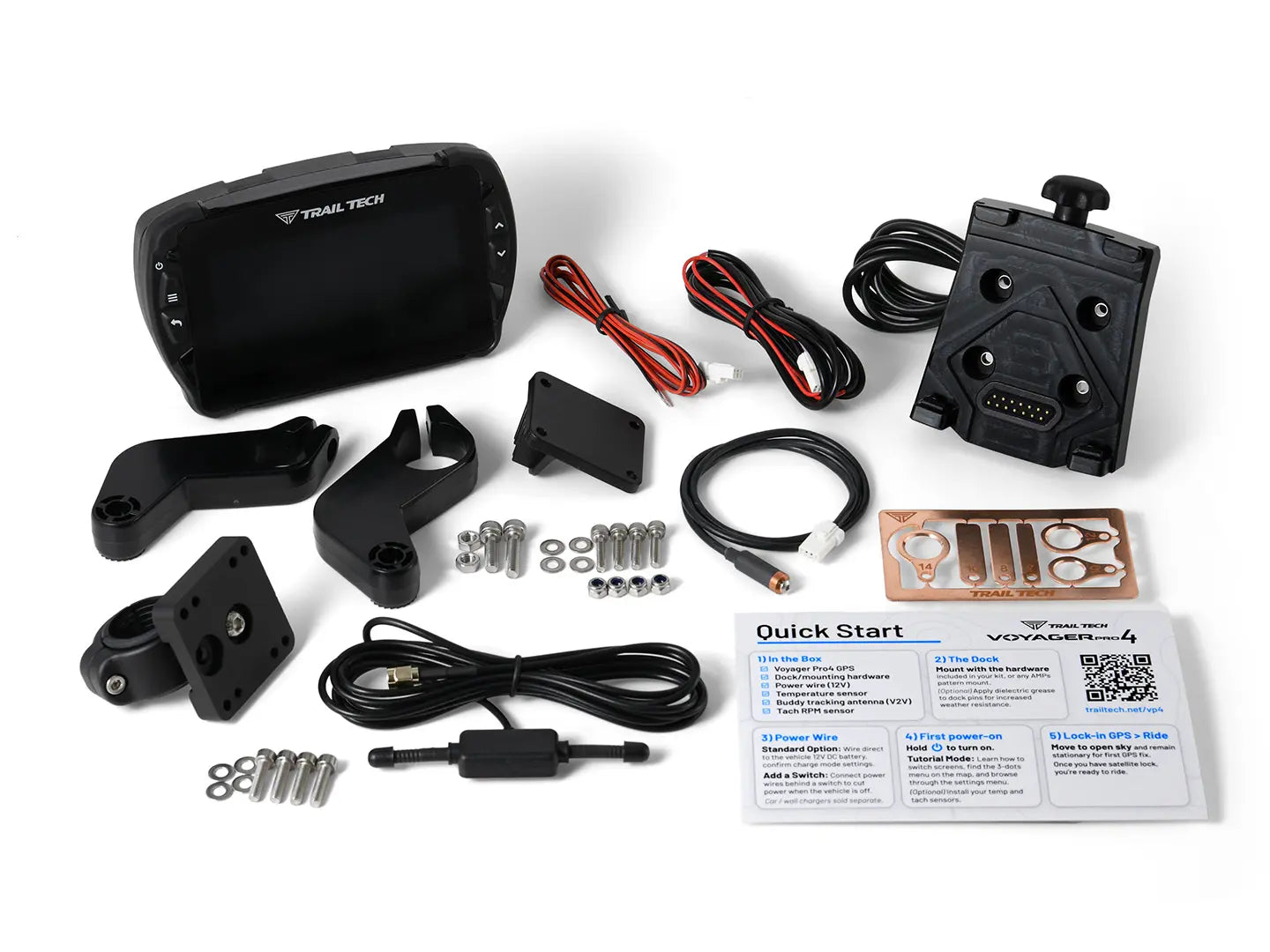

What's In the Box
Main Unit
- 9205-R2: Voyager Pro 4 Head Unit
- 9200-ALDK: Aluminum Docking Station (quick-release, thumbscrew retention)
Mounting Hardware
- 9200-BCA: Plastic Handlebar Mounting AMPS Plate
- 9200-BKPK: Plastic Handlebar Mounting Hardware
- 026-OEB9: Aluminum Center Mount (for 1-1/8 in handlebars)
Wiring, Antennas & Sensors
- 9200-V2V1: Buddy Tracking V2V Antenna (included)
- 9000-1011: Power Wire (48 in)
- 9000-1021: Tach Sensor (70 in)
- 7500-3000: Universal Temperature Sensor
Small Parts & Extras
- 010-TTKC: Trail Tech Keychain
- TTST-165-BK: Trail Tech Sticker
Documentation
- 010-ELV-VP4: Quick-Start Postcard
Optional Accessories
- Wheel Sensors: Sold separately
- 027-PR2: Voyager Pro4 Protector, Center Bar Mount (CNC aluminum head unit guard)
- 027-IDB: Voyager Pro4 Protector + CNC 4-Light Indicator Wing Bundle
- 063-JMP: Trail Tech Jumping Power Pump combo device
- 9205-SHIELD: Voyager Pro4 Screen Protector
REPLACEMENT PARTS / RELATED ITEMS
- Compatible SKUs: 9205-R2; 9200-ALDK; 9200-V2V1; 9000-1021; 7500-3000; 026-OEB9
- Related Products: Voyager Pro4 MOTO Kit; Voyager Pro4 UTV Kit; 027-PR2 Voyager Pro Protector, Center Bar Mount
- 9200-ALDK: Aluminum Docking Station
- 9200-V2V1: Buddy Tracking V2V Antenna
- 9000-1021: Tach Sensor (70 in)
- 7500-3000: Universal Temperature Sensor
- 026-OEB9: Aluminum Center Mount (for 1-1/8 in handlebars)
